Model CCUC-030ARM/L
Brand Coolinkpros

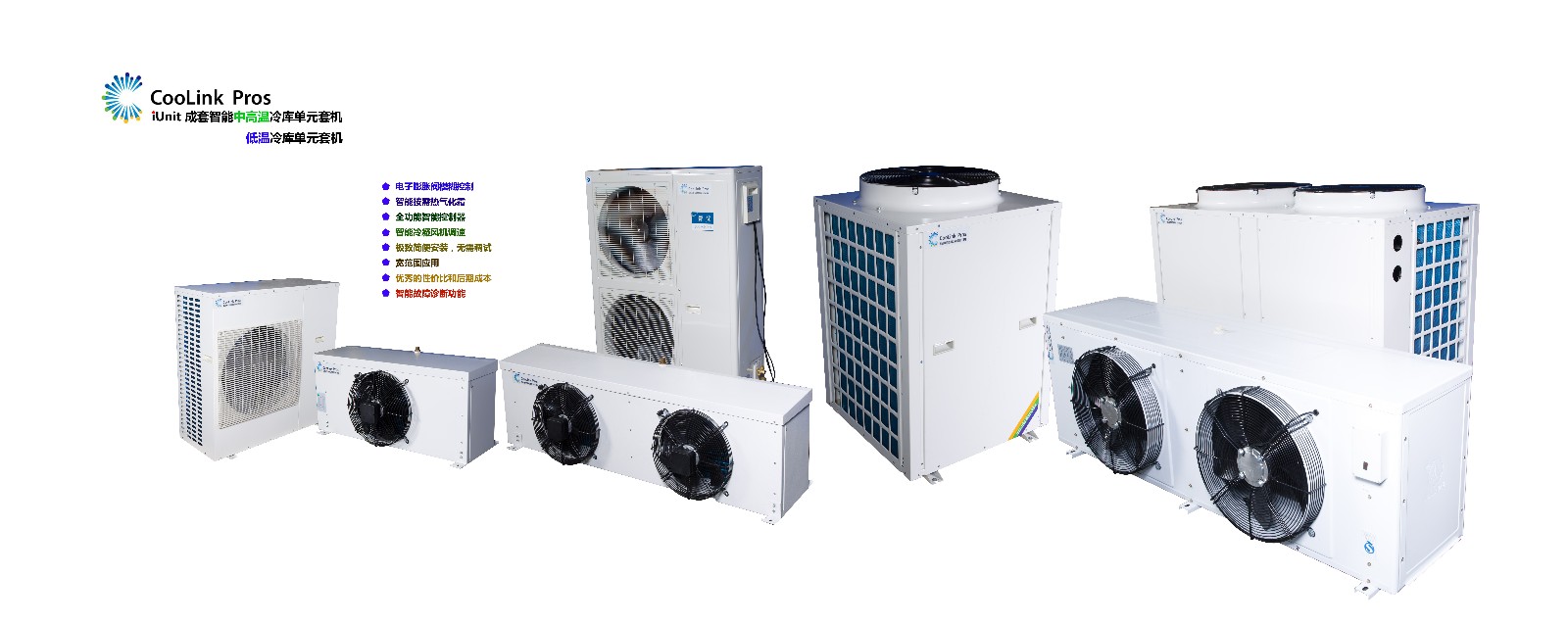

Product 3HP Mid-Low Temp. iUnit CDU+Air cooler
Rotary Mid-Low Temp.CDU Catalog
Introduction:
Rotary Mid-Low Temp. packaged CDU set is equipped with HIGHLY Rotary Compressor(w/wo Liquid/Vapor Injection). R404A refrigerant pre-charged.
It's suitable for the cold-storage temp.
Mid-Temp.: -18℃～+10℃
Low-Temp.: -30℃～+5℃
Nominal capacity from 3~15HP.
Features:
1. Applying coldroom temperature: -30℃～+10℃;
2. Fuzzy control of EXV; greatly improved the unit cooling efficiency, fast and stable superheat control;
3. Intelligent hot gas defrost technology,adapted with hot gas defrost air cooler,the defrost time greatly shortered (about 70% reduced),energy saving （about 80% reduced), temperature rising range is small （5℃~7℃，the traditional unit 12℃~15℃）.
4. Condenser fan speed control according condensing temp., applicable to a wider range of ambient temperature: -15℃～+48℃；
5. Easy installation, Optimized testing & commission, Smart startup self-diagnostic function;
Remote monitoring and maintenance module(Optional)
6. Large air volume and area, 100% heat exchange capaicty with all 4.5mm fin space Air cooler;
7. Hotgas defrosting design, no fin electric heater required.
Configuration:
Fuzzy control of EXV
Smart Hot-gas defrost on demand
Intelligent controller for complete system control
Intelligent Fan speed control
Oil separator/Accumulator + Economizer + Pressure sensors
R404A refrigerant pre-charged
Standard installation and Optimized testing & Commissioning
4.5mm fin space Air cooler
Specifications:
| MODEL CDU | CCUC-030ARM | CCUC-030ARLL |
| EVAPORATOR | CAE-030/302R45A | CAE-030/302R45A |
| Electric Power | 3 phase 50Hz, 380/415V | 3 phase 50Hz, 380/415V |
| Norminal HP | 3HP | 3HP |
| Refrigerant | R404A | R404A |
| COMPRESSOR Type | ROTARY | ROTARY |
| Model | DTH488LC | DTH488LC |
| Capacity (W) * | 2998 | 1555 |
| Power Input (W) ** | 1966 | 1649 |
| COP | 1.5 | 0.9 |
| Motor LRA (A) | 32 | 32 |
| Motor MOC (A) | 9 | 9 |
| Oil Type | POE | POE |
| CDU | ||
| Condenser Model | G-SU030 | G-SU030 |
| Condenser Fan Size | 450 | 450 |
| Qty of Fan | 1 | 1 |
| Connection Size | ||
| Liquid Line | 1/2" | 1/2" |
| Suction Line | 5/8" | 5/8" |
| Dimension (W X D X H) | 1012 X 390 X 826 | 1012 X 390 X 826 |
| Weight (KG) | 85 | 85 |
| EVAPORATOR | CAE-030/302R45A | CAE-030/302R45A |
| Evaporator Fan Size | 302 | 302 |
| Qty of Fan | 2 | 2 |
| Fan Motor Voltage | 1 phase 50Hz, 220/240V | 1 phase 50Hz, 220/240V |
| Air Flow Distance (m) | 10 | 10 |
| Air Volume (m3/hr) | 3150 | 3150 |
| Fin Spacing (mm p/inch) | 4.5 | 4.5 |
| Power Input Fanset (W) | 150 | 150 |
| Drain Pan Heater Power (W) | 500 | 500 |
| Drain Pipe Size | 1" | 1" |
| Dimension (W X D X H) | 887 X 455 X 484 | 887 X 455 X 465 |
| Weight | 30 | 30 |
* Capacity. For mid-temp.Scroll Unit, 3HP-10HP the capacity based on evaporating temp. at -25°C, condensing temp. at 40°C; 13HP-15HP based on evaporating temp.at -20°C, and condensing temp.at 40°CRemarks:
For low-temp Scroll Unit. the capacity based on evaporating temp. at -40°C, condensing temp. at 40°C
For rotary Unit, the capacity based on evaporating temp.at -40°C, and condensing temp.at 45°C.
** Power input data refer to above capacity basis.
